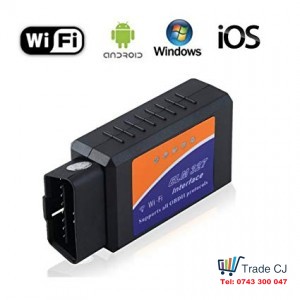

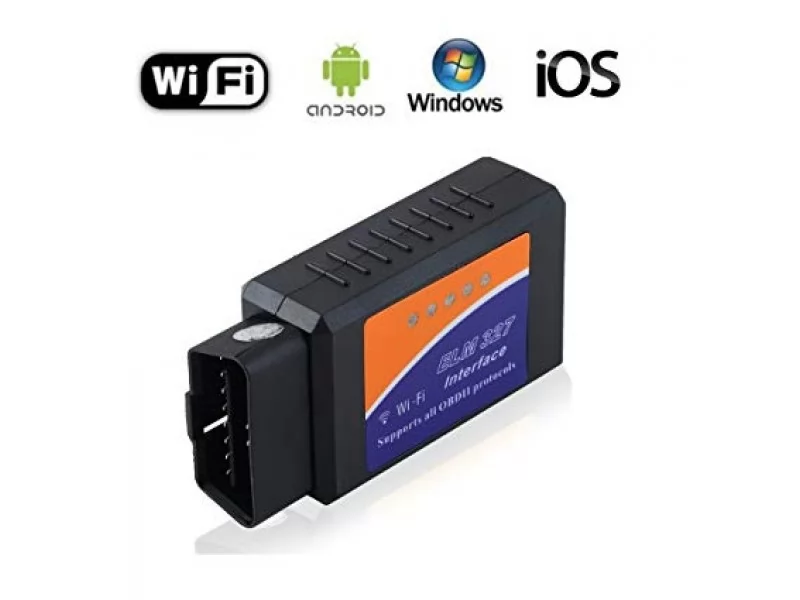

Universal diagnostic interface OBD2 ELM327 with WIFI for Iphone Ipad

About Universal diagnostic interface OBD2 ELM327 with WIFI for Iphone Ipad:

Specifications

ELM 327 Wifi Compatible with iPhone and iPad

The adapter is compatible with many iOS applications that can be downloaded for a fee from the App Store, among the best being REV, or DashCommand, or one of the least expensive Engine Link.

Windows Scanmaster ELM is recommended for use with Windows.

ELM 327 Wifi is a versatile, multimeter diagnostics interface that is compatible with almost all brands and models of gasoline cars since 2000 and those on diesel fuel from 2004 to date with the OBD II plug.

Allows to read, interpret and delete all errors present on the engine.

Read both general and specific codes for each manufacturer.

It's very easy to use!

Functions:

1. Read the fault diagnostics codes, both generic and manufacturer-specific, and display their significance (over 3000 generic code definitions in the database).

2. Clear Error Codes and Stop MIL ("Check Engine" light)

3. Display real-time data from sensors, including:

- engine speeds

- Calculate the value of the load

- coolant temperature

- power system status

- vehicle speed

- short-term fuel consumption

- long-term fuel consumption

- Intake manifold pressure

- distribution schedule

- Intake air temperature

- Airflow

- throttle position

- oxygen sensor

- fuel pressure

Multi-Protocol support:

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850 VPW (10.4Kbaud)

• ISO9141-2 (5 baud init, 10.4Kbaud)

• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

• ISO14230-4 KWP (fast init, 10.4 Kbaud)

• ISO15765-4 CAN (11 bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud)

• ISO15765-4 CAN (11bit ID, 250 Kbaud)

• ISO15765-4 CAN (29bit ID, 250 Kbaud)

• SAE J1939 CAN (29bit ID, 250 * Kbaud)

• USER1 CAN (11 * bit ID, 125 * Kbaud)

• USER2 CAN (11 * bit ID, 50 * kbaud)
