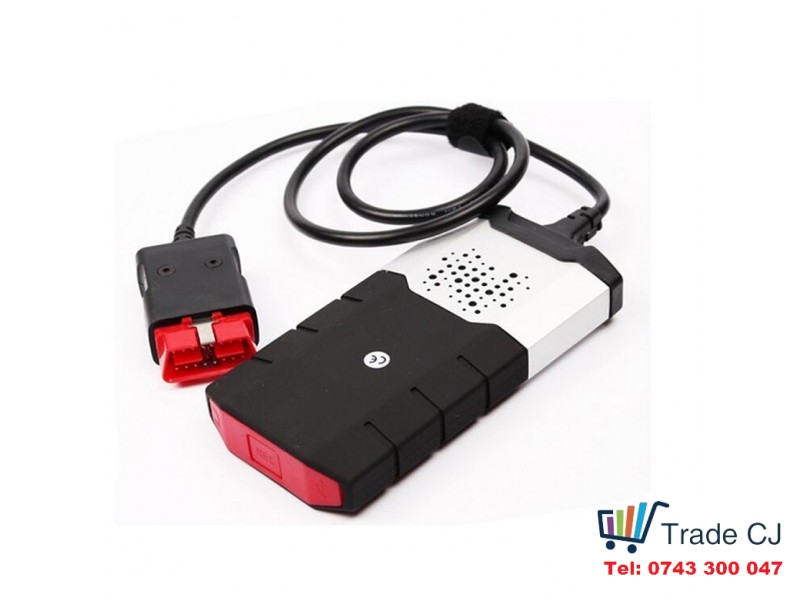

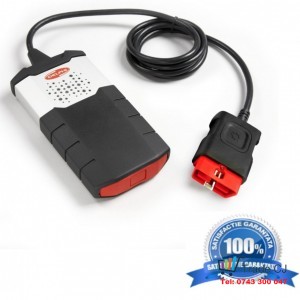

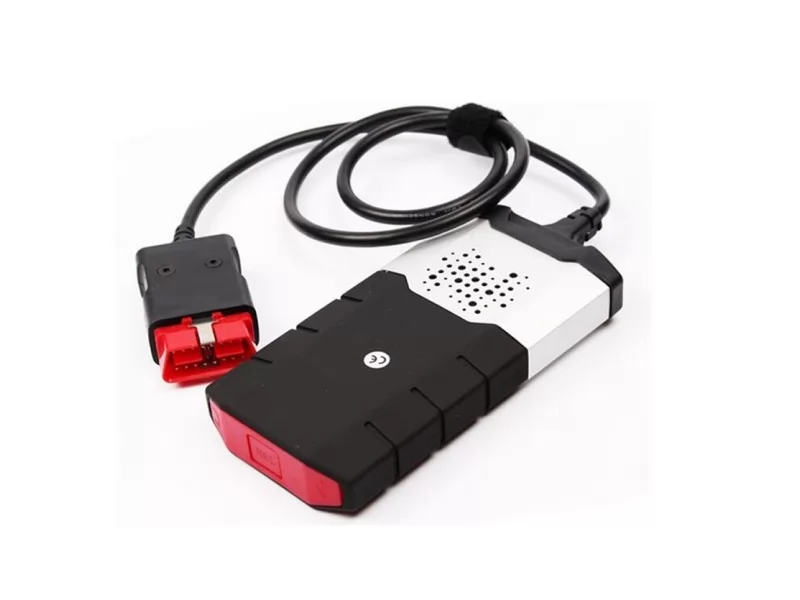

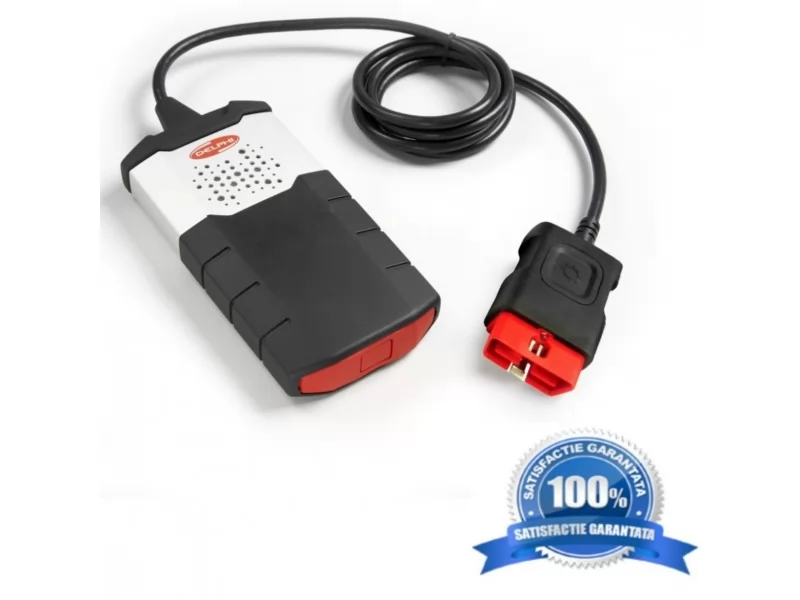

Interface Diagnosis Auto Delphi DS150E Bluetooth Tester

About Interface Diagnosis Auto Delphi DS150E Bluetooth Tester:

Auto Tester Diagnostics Interface Delphi DS150E - Software 2017.0 Multimark

Supported machine models:

Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, Ferrari, Fiat, Ford, Honda, Hyundai, Isuzu, Iveco, Lotus, Maserati, Mazda, Mitsubishi, Nissan, Opel / Vauxhall, Peugeot, Porsche, Renault, Rover, Saab, Samsung, Seat, Skoda, Smart, SsangYong, and so on

Supported truck models:

Allison, Chevrolet, Citroen, Dacia, DAF, Fiat, Ford, Hyundai, Isuzu, Iveco, Iveco trucks, KIA, MAN, MAN, Mazda, Mercedes, Mitsubishi, Scania, Scania bus chassis, Seat, Skoda, Toyota, Trailers, Volkswagen, Volvo bus chassis, Volvo trucks.

Technical data

- The DS 150 module can be connected to the PC / Laptop cable

- Direct connection to the car via the OBD cable

- supports the following diagnosis protocols: ISO (European), SAE

(American and Japanese), CAN, CAN-Bus

- combines the advantages of the DS500, DS800 hardware platform with ease of use and price / quality ratio from the DS100.

functions:

- Read and clear error codes on all car systems.

- Displays real-time information and can save them

- Activate components

- Codes the ECU, adjusts parameters, configures components (initiates new components, regenerates particulate filters, encodes diesel injectors, TPMS, etc.)

- It has a smart scanning system that scans the entire machine with a single click.

- Reset service intervals

- On new VAG models it can remove the brake pistons when changing the tiles,

- Mercedes disables SBC for the same reason as VAG

- The Delphi Multiplexer supports the protocols: 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K / L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 SPI, analog in, 5volt out)

- Many other features.

Detailed features of Delphi DS150 Diagnostic Tester

FLIGHT RECORDER - With this function, you can record the parameters in real time while driving a car. During recording, you can highlight a specific error at the touch of a button, so you can investigate the detected error at a later time.

The DS150 is equipped with a memory card slot (microSD) eliminating the need for a computer. The memory card is not included in the package.

Report function. Under this feature, you'll be able to see the adjustments and encodings that are possible for that car without having to connect with the tester on that car. Together with help texts, as a guide, you can plan and be effective, even in complex situations.

OBD Functions. The Delphi DS150 is equipped with a unique multiplex technology that allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin OBD connector, we offer a complete and certified set of customized adapter cables. ISS - Intelligent System Scan - complete scan of all ECU / ECM - scans through all vehicle systems and displays the error codes that are stored in each system.

This saves time and you will get an overview of the current state of the entire vehicle. When the ISS is complete, you can select a specific control system to analyze the results further.
