HDMI Extender with one CAT5e CAT6 1080P 4K TX RX

About HDMI Extender with one CAT5e CAT6 1080P 4K TX RX:

HDMI Extender with one CAT5e/6 cables to extend the HDTV or 4K displays up to 30 meters 1080p, not only breaks the limitation of the HDMI cable transmission length, but also has more flexibility and convenience in cable construction.
Features:
This HDMI extender has many features that enable to perform in a superior manner, among those features you will find:
1. One pair as full functional module without setting (TX-RX).
2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
3. Follow the standard of IEEE-568B.
4. Transmission distance can be up to 30 Meters for 1080p using CAT-6 cable.
5. Compact size.
6. Signaling rater up to 1.65Gbps in support of 1080p display.

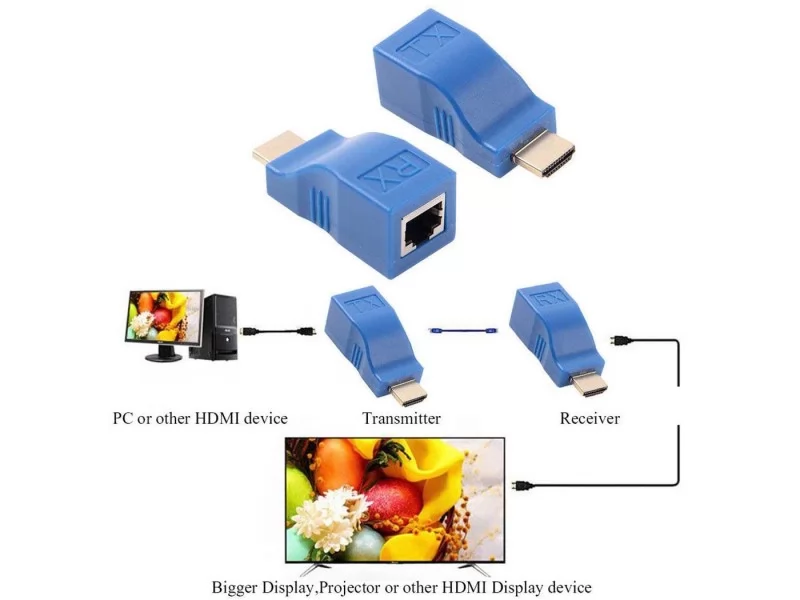

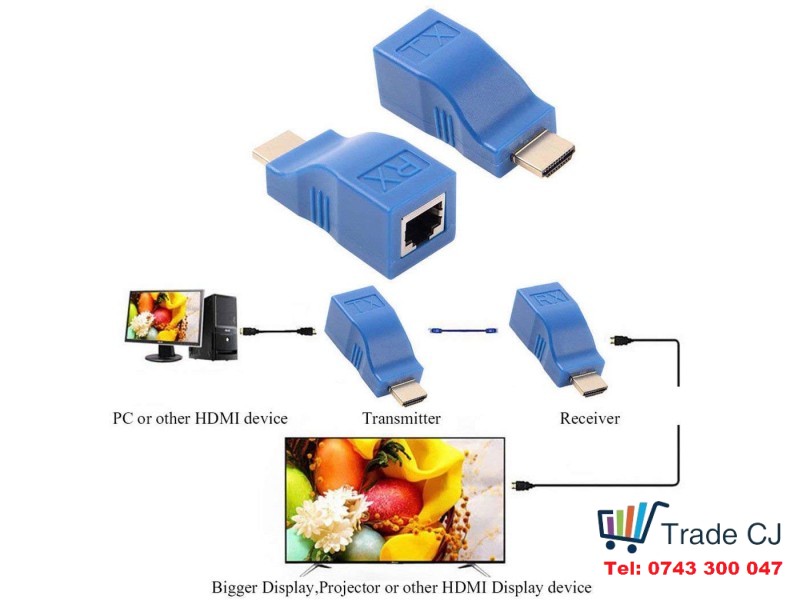

Operation:
1. Plug the HDMI connector of the sender into the HDMI signal source without HDCP, such as: Computer,Laptop,TV box, STB etc.
2. Connect the TX HDMI adapter Single CAT-5e/6 cables, then the other end to the RX HDMI adapter to both the output of the transmiter and input of the receiver.
3. Plug the fixed HDMI cable of the receiver into the HDMI display, such as: HD-LCD, HD-DLP etc.
Tips:
1.This HEA30 does not support HDCP, Please know it before purchasing.
2.This HDMI extender can not work with TV topset.
3.4K Resolution only supports 10m transfer distance while 1080P max supports 30m.(Over max support distance of each resolution, the picture quality will decline )
